The sausage factory

We are a sausage factory

We make specialist sausages

The sheer amount of sausages we make, gives us competitive advantage

Each and every sausage gives us some kind of value

... but, there is a problem

Our customers want better sausages

They don't ask for much !!!

This is where automation comes in

We deliver value through automation ... it's what we do

So why do we so often fail to automate our processes?

Automation

“automatically controlled operation of an apparatus, process, or system by mechanical or electronic devices that take the place of human labour.”

The key thing here is:

take the place of human labour

Really? All human labour???

take the place of wasteful human labour

Why do we automate?

What do we expect to get from it?

Avoid going nuts

Some things should not be automated

What can be automated?

Pretty much anything

... we work in Technology, remember?

So the real question is ...

where do we start?

This is where the Value Chain comes in

The Value Chain

First we need to understand value

What is the true value of the products we make?

How do we release the value?

We should probably stop talking about sausages now ...

We create value through lots of chained processes

When we understand them all, we understand the Value Chain

Once we understand the Value Chain we can target the right bits to automate

Testing is not the only fruit

Typically everyone focuses on test automation, what about:

• release processes?
• management of environments?
• code creation?

Use the Value Chain to prioritise

Our Value Chain

We got everyone in a room and built our Value Chain

... it took a long time to build it

... but we found a number of problems

This is our Value Chain

Meet Joe ... pulling value

... and this is what we found

Problem #1 from the Value Chain

Releases to environments were not standardised

• Unreliable
• Hard to repeat
• Every release was different
• Production Services were stressed !!!

Simplified the release process

This was our acceptance criteria

Principles Learned

• Releases to all environments must be the same, focus on simplicity and repeatability.

• Test the release process continuously (including data migrations).

• Production Services should be bored all the time.

Problem #2 from the Value Chain

Automated tests require lots of team time

• Data driven rather than intent driven
• All end to end system tests
• Slow to run
• Fragile
• Development Teams were stressed !!!

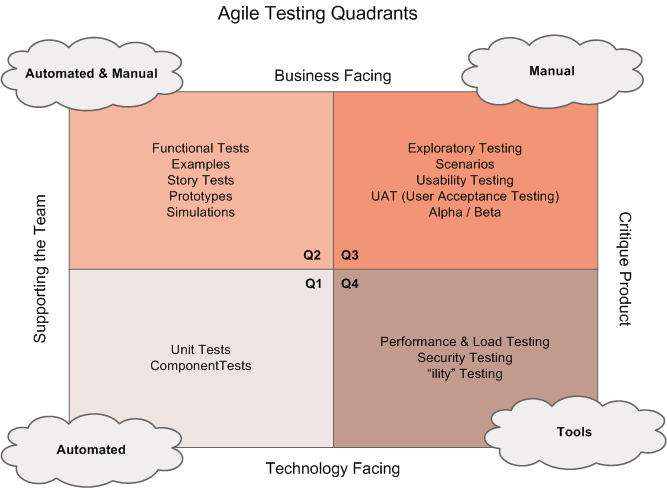

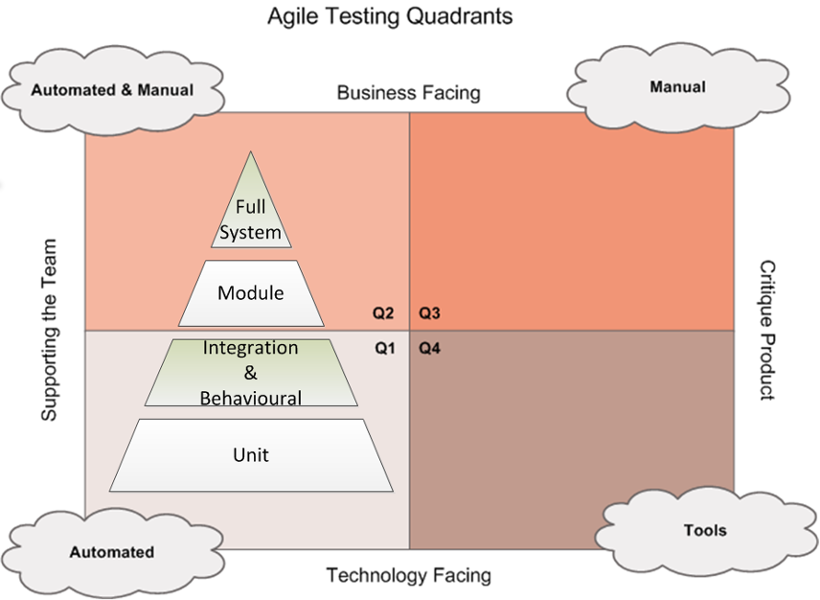

The testing quadrant

Lisa Crispin & Janet Gregory

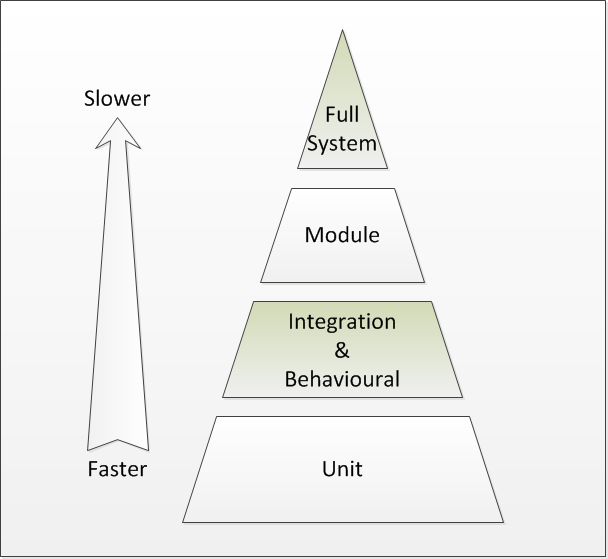

The testing pyramid

They should work together

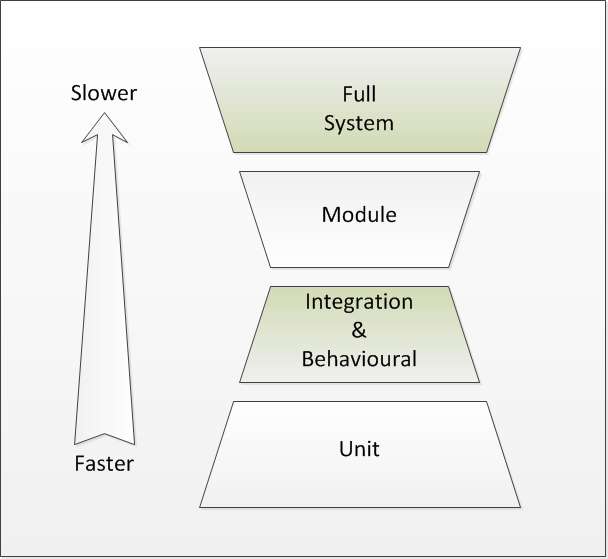

This is what ours looked like

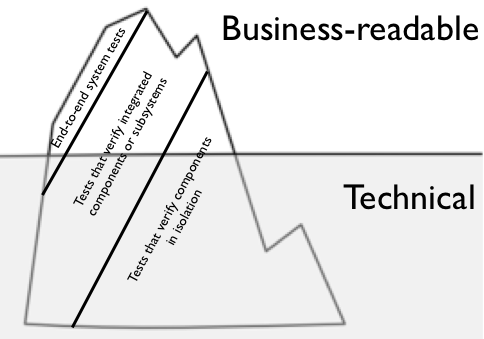

Tests are documentation

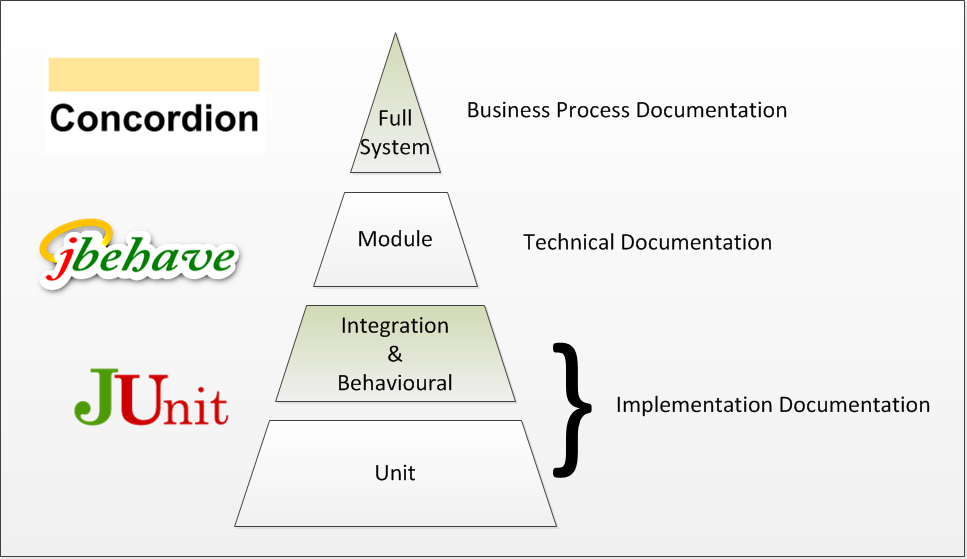

This is the new strategy

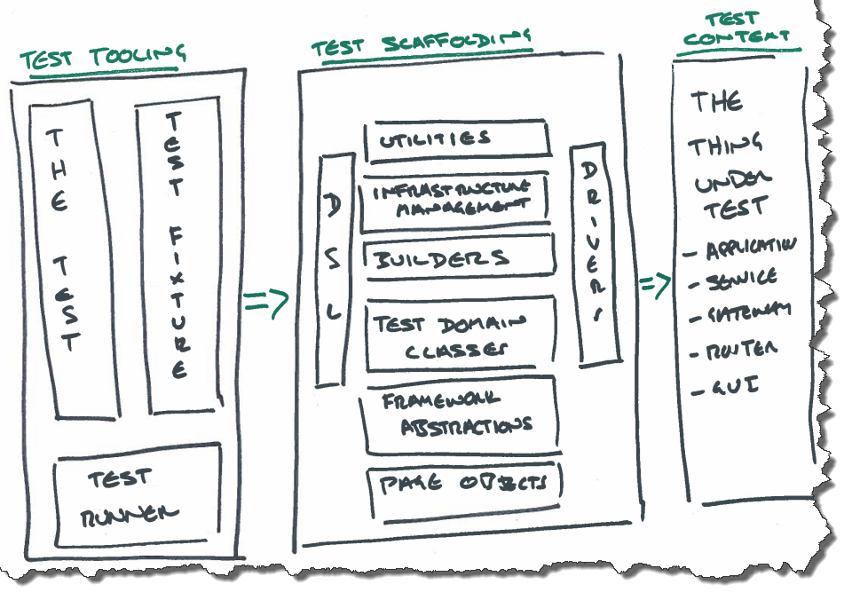

This is the high level design

This is a business process document

Using natural language as a Specification By Example

These are the technical documents

Using structured language in the Gherkin style

Principles Learned

• Test functionality at the appropriate level.

• Testability is a requirement. If its hard to test, change the application.

• Tests are the primary form of documentation: a living documentation.

• Design the test content for the reader: use different techniques and tools to achieve this.

• Treat test code with the same respect as production code.

Problem #3 from the Value Chain

Continuous Integration builds are always broken

• Following strict Continuous Integration techniques
• 17 globally dispersed dev teams
• "Unstable trunk" branching strategy
• Technology Leads were stressed !!!

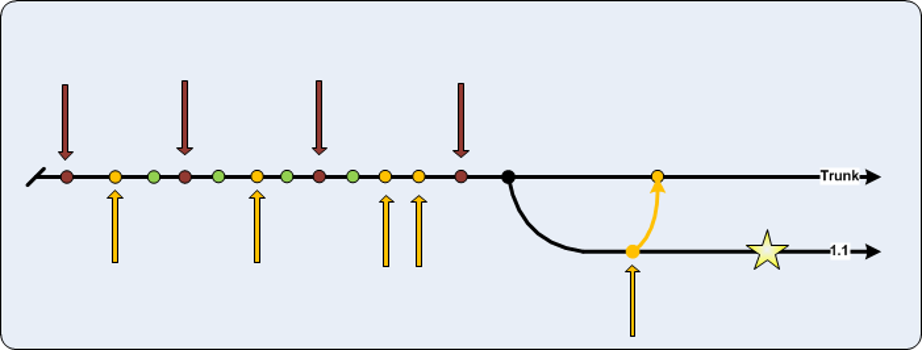

Unstable branch strategy

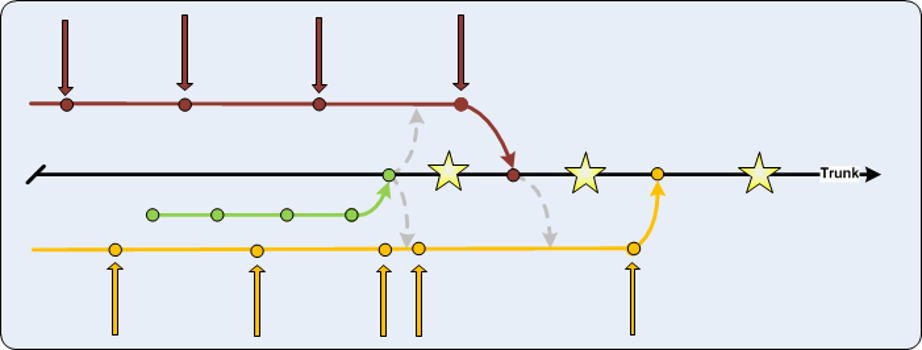

Feature branch strategy

The paradox

Continuous Integration vs. Feature Branches

Be done on the branch

This means everything:

• Testing
• User acceptance
• Migration scripts
• SOX evidence
• Release notes

Done means you can put this live now!

Testing on each branch

... wow thats a lot of testing

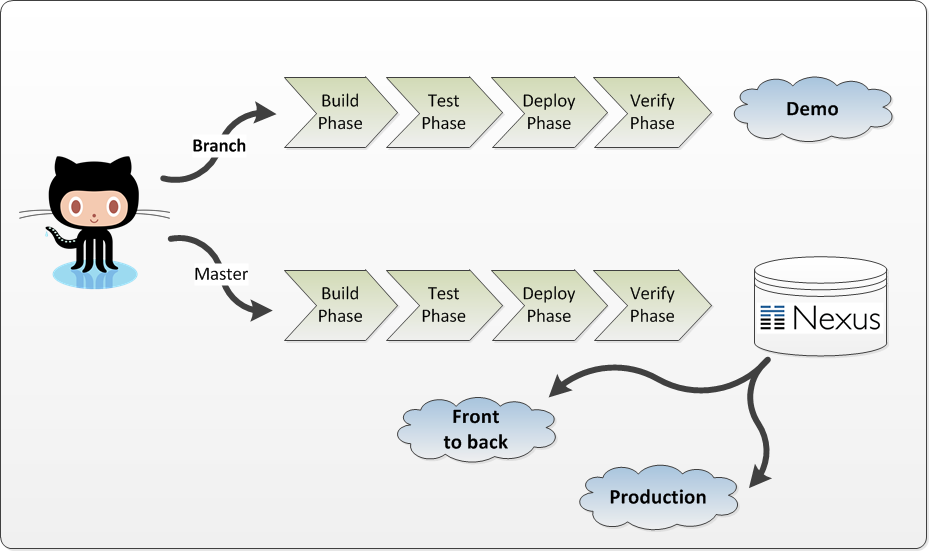

Build pipeline

This is our sausage machine!!!

Our Pipeline Radiator

Principles Learned

• Use branches to segregate incomplete work, until you are ready to integrate

• Be in control of integration; yet integrate often

• Changes should be large enough to make sense to the customer; yet small enough to deliver swiftly.

• Employ a strict regime of "stop & fix"

• You should be able to release to production from Master at all times.

Problem #4 from the Value Chain

We don't have enough environments

• Feature teams need their own environments
• We only had 2 static environments ... 17 teams
• Everyone was stressed !!!

We don't need dedicated testing environments

we sometimes need environments for short periods of time

... with specific features in them

Static environments are too ... static

Pets and cattle

CERN Data Center Evolution

Today, we only have pets

For testing we need cattle

Our servers are resources, we should treat them like that.

With the help of CTO we built a prototype

... it happens to use Open Stack

... it builds environments from nothing in around 2 minutes

... we are looking at Docker for scaling common things

meet SSENG-master-19

it is the same as SSENG-master-18

it is a fully contained environment

It is based on our specifications

... all we really care about is how to communicate with it

14.67.67.200

Principles Learned

• Test environments should be treated as a disposable resource: used on demand and then thrown away.

• Infrastructure as code: never change an environment, throw it away and create a new one from a template.

We have removed CHF 250K p.a. of waste

No budget

No permission sought

No project managers

Continuous Improvement is a part of the culture

Something to take away

Don't automate for the sake of it

Use The Value chain

Iterate

GOTO 10
